The 1830mm 72″ Large Format Printer ECO Solvent DX5+RIP is a high-quality printer designed for printing wide banners and vinyls. With a maximum resolution of 1440dpi, it ensures sharp and vibrant output. The printer uses eco-solvent ink, which is both durable and environmentally friendly. It features the DX5 print head, known for its exceptional print quality and longevity. Additionally, it comes with RIP software, allowing for seamless printing workflows. This large format printer is perfect for businesses and professionals in need of high-quality prints for their advertising and promotional materials.
|
VINYL EXPRESS V5-1801 ECO-SOL SOLVENT PRINTER 1830mm, 72″ ,Epson DX5 Non-coded Printhead,1440dpi Latest Product in 2018 ! |
|||||
|
EPSON TECHNOLOGY, NON-COADED DX5
|
|||||
| Features: | |||||
|
1.With EPSON DX5 print head Non-coded version with better printing quality than the coded,Max 1440dpi.
3.Printing with gradual change and feathering technology to remove printing lines effectively. 4.HIWIN linear rail with double sliders ensures smooth and stable carriage movement. 5.LeadShine servo motor for the carriage movement, higher accuracy, lower noise, 6.Automatic paper feeding, ink pumping, print head wiping and cleaning. 7.Auto bulk ink feeding system with 4 exterior ink tanks of 500ml each ensures high speed and fluent ink feeding. 8.Comes with one set of fast drying ink for FREE, drying while printing, less smell, low cost. 9.Takes optical fiber instead of flat cable for inner communication, more faster speed and stable, 10.Front and back platform heating function with temperature controller ,can set the temperatures separately, 11.With front/back two side handle for lifting the pinch rollers conveniently. 12.With floater ink cartridges which can control the ink volume automatically while printing. |
|||||
|
Parameters: |
|||||
|
Model |
V5-1801 |
||||
|
Max Print Width |
1830mm,MAX Feeding 1900mm |
||||
|
Print head |
Epson DX5 non-coded |
||||
|
Number of Print head |
1 |
||||
|
Max Resolution |
1440dpi |
||||
|
Color Mode |
Dual C M Y K |
||||
|
Speed |
3 Pass(Produce mode) |
18㎡/h |
|||
|
4 Pass(Quality mode) |
13㎡/h |
||||
|
6 Pass(High resolution) |
10㎡/h |
||||
|
Ink Type |
Eco solvent ink/water based ink/sublimation ink |
||||
|
Heating system |
Pre and after-heating, with temperature controller |
||||
|
Drying Fan system |
With infrared heating tubes |
||||
|
Auto take up System |
With |
||||
|
Interface |
USB2.0 |
||||
|
Language |
English |
||||
|
Software |
Maintop 5.3 with dongle, available Photoprint |
||||
|
Printer driver |
Win7 32/64bit, Win8 ,Win10 |
||||
|
Print head Cleaning |
Automatic, anti-jam and keep nozzles moisten |
||||
|
Driving System |
Leadshine servo and stepper |
||||
|
Print head height |
1.8mm-3mm |
||||
|
Power |
AC220v,50HZ/60HZ |
||||
|
Power consumption |
Idle 32w Max 1500w |
||||
|
Print Material |
Vinyl, flex banner, PVC, One Way Vision ,canvas, leather, wall paper,Etc |
||||
|
Media process |
Roll to Roll |
||||
|
Machine Dimensions |
L2828mmxW700mmxH620mm |
||||
|
Details: |
|||||

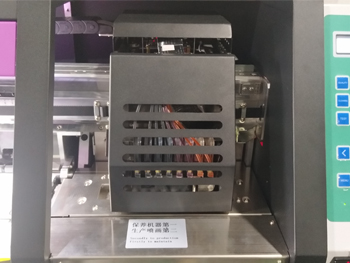

 Single Epson DX5 print head on fine-made carriage
|

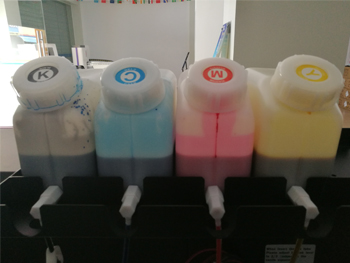

Bulk ink system with 4 exterior big volume tank |
||||
|

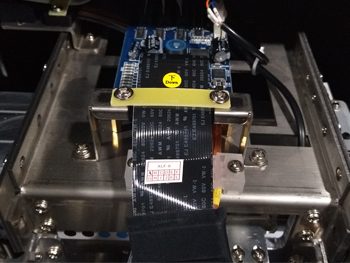

Upgraded carriage board with printheads install protection |
 Printhead maintenance station,auto printhead cleaning and wiping
|
||||

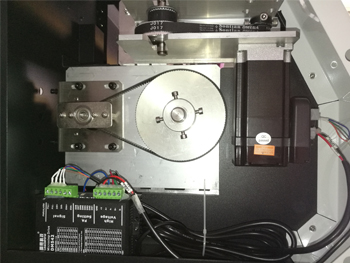

LeadShine servo motor for carriage movement
|

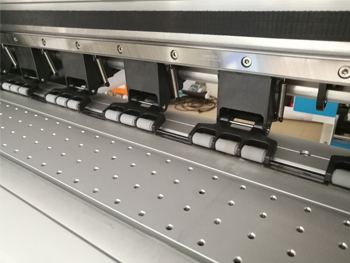

Durable friction roller system witr tight &smooth feeding and big power absorption platform
|
||||
|

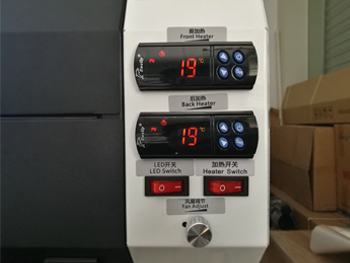

Temperature controller for the platform heaters
|

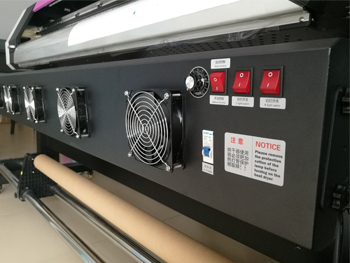

Intelligent drying system with infrared heating tube
|
||||
|

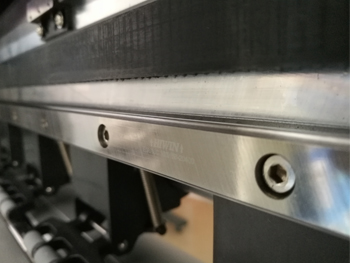

Hiwin linear rail with dual sliders
|

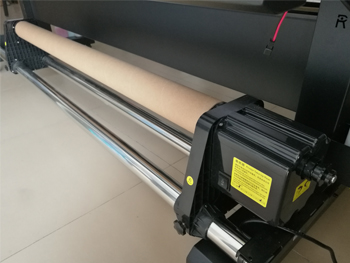

 Auto take up system
|
||||
|
What’s in package
|
|||||
|
Printheadx1,|Media feeding systemx1 set,|steel pipes for feed and take up system: 4pcs,|stand x 1set|dring fan systemx1 |Software Maintopx1 |Eco solvent ink x4 liters|cleaning solution: 1 liter| Power leadx1|filter x4|Damperx7|USB cablex1 | spannerx1|syringex1| screwdriverx1 |ink tube x1 reel| waste ink bottlex1|bulk ink feeding systemx1 |
|||||
|
|||||
